Ultrasonic Stripping Overview
A compact, production-ready ultrasonic stripping system that removes the cold section of mineral-insulated (MI) cable sheathing, exposing the internal conductors for termination and potting. The MI Stripping Machine uses high-frequency ultrasonic energy to break down densely compacted MgO insulation without damaging the cable sheath or conductors.
Controlled bursts of ultrasonic energy are transmitted through the sheath wall, returning the MgO to a powder state so the sheath can be pulled clear. Ultrasonic power delivery is digitally generated and controlled, giving consistent amplitude and frequency stability.

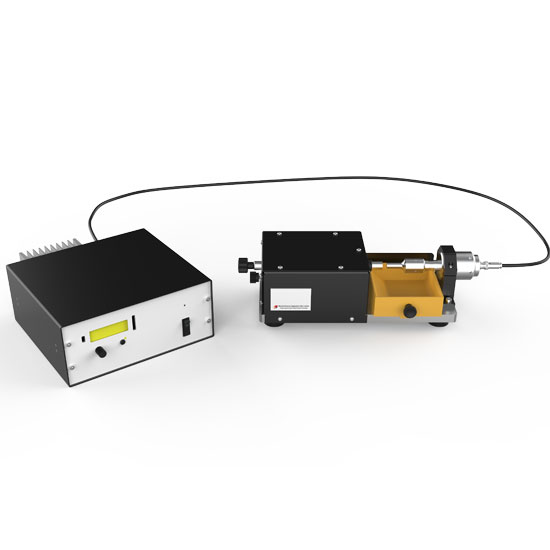

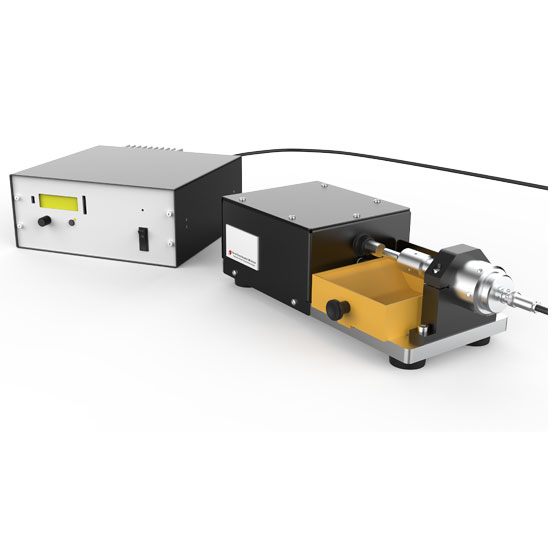

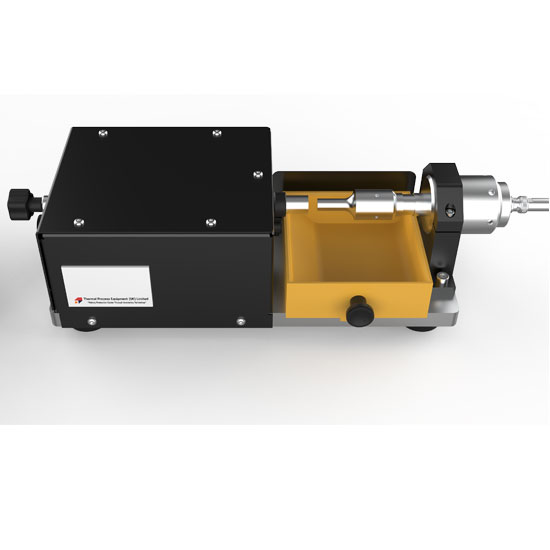

Controlled bursts of ultrasonic energy are transmitted through the sheath wall, returning the MgO to a powder state so the sheath can be pulled clear. Ultrasonic power delivery is digitally generated and controlled, giving consistent amplitude and frequency stability. Programmable operating parameters allow recipes to be stored and recalled for different cable jobs. The system is supplied as a stand-alone tabletop generator paired with a compact stripping head, allowing flexible integration into production environments. Continuous monitoring of operating parameters, temperature management, and integrated protection functions support reliable operation during sustained duty cycles.
If you would like more information about this product, please fill out the form below:
- Footswitch: Footswitch operation for ease of use
- Diameter Range: 1.0 – 8.0 mm
- Ultrasonic Generator: 400W

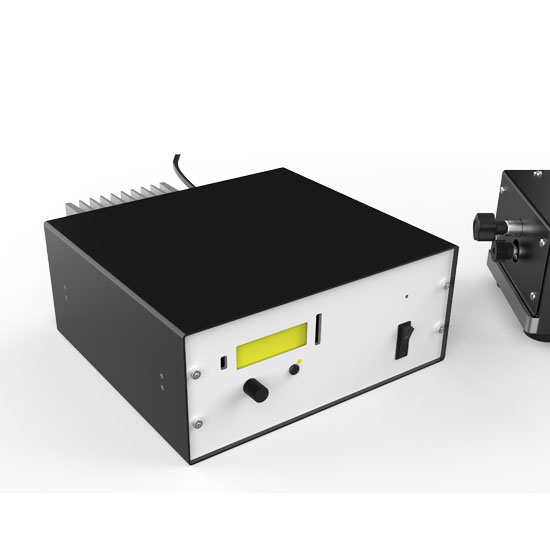

- Control: Stand-alone Sonic Digital technology, table-top SonoScan device with on-device operation and display, digital creation and control of frequency, 32-bit microcontroller
- Amplitude Control: Electronic, 50–100%
- Programmable Parameters: Up to 99 individual assignments
- Footprint: 130 × 250 × 270 mm (Generator), 300 × 150 × 110 mm (Main Unit)
If you would like more information about this product, please fill out the form below:
1.0 mm to 8.0 mm.
Controlled bursts of high-frequency ultrasonic energy break down the densely compacted MgO insulation back to a powder, without damaging the cable sheath or conductors.
400W, digitally generated and controlled via a 32-bit microcontroller for consistent amplitude and frequency stability.
Yes — operating parameters are programmable, with storage for up to 99 individual assignments.
130 × 250 × 270 mm for the generator, 300 × 150 × 110 mm for the main unit.
